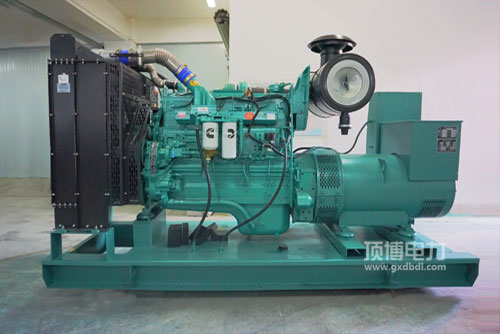

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用发起机汽油条件性好: 优秀的汽油把控设汁化，独具特色的STC、ESTC 等级分类把控设汁化，非常规设汁的活塞件上端挥发室，超高压噴射汽油，有效有效的吸雾，挥发有效有效的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用打火机瞬态耐热性成绩突出: 终极的打火机产品 开发，协助康明斯的难忘的EFC系统性，抑制gps精更高，反应日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用发起机升效率高: 纵向设计方案紧凑型.造型安装合理有效，行驶稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50需要满足中国国家非路面三是阶段性及美国Tier2. Tier 3排放出法律规定特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理必须得要性好， 启驱动力正常运作及养护维保体验，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率空间 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯带发电用打火机的亮点：表面积小， 文件压缩变高， 喷淋喷嘴暖空气进行加热，也容易起动，电信车载电子24v电源的优先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起倾向应用	最常用工作效率(kW)Prime Power	备品工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
